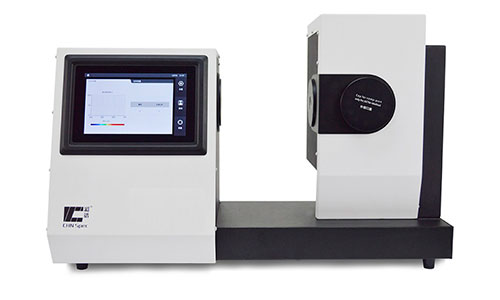

The HACS-720 clarity and haze meter is suitable for one-stop measurement solution of clarity, color, haze, spectral transmittance and total transmittance of transparent and translucent materials such as plastic, film, glass, LCD panel and touch screen.
It has rich measurement parameters and provides professional definition measurement functions.
Product features
- Different measurement parameters and professional clarity measurement function
- Comprehensive transmission color parameters
- Comply with ASTM and ISO standards
- Different light sources for different measurement standards
- Compensation measurement to make test result more accurate
- Haze QC software as standard accessory
- Seven-inch Android touch screen for better user experience
- Open sample measurement area, sample can be measured horizontally or vertically
- Abundant measurement fixtures
Clarity and haze meter HACS-720, technical data
| Light source | Haze/transmittance: CIE-A, CIE-C, CIE-D65 Chromaticity index: A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CMF, U30, DLF, NBF, TL83, TL84 |
| Standards | ISO 13468, ISO 14782, DIN 5033, JIS K 7105, JIS K 7361, JIS K 7136, JIS Z8722, GB/T 2410-08, CIE No.15 |
| Parameters | HAZE, Transmittance (T%), definition (C%), Spectral transmittance, CIELab, LCh, CIELuv, XYZ, Yxy, Hunter Lab, Munsell MI, CMYK, Whiteness WI (ASTM E313-00, ASTM E313-73 CIE/ISO Hunter, Taube Berger Stensby), Yellowness YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), Heterochromatic index milm, APHA, Pt-Co, Gardner, chromatic aberration (ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc (2:1), ΔE*cmc (1:1), ΔE*94, ΔE*00 |
| Spectral response | CIE the specrum function Y/V (λ) |
| Wavelength range / interval | 400–700 nm / 10 nm |
| Geometry | 0/d |
| Measurement area / aperture size | 18 mm/25,4 mm |
| Measurement range | 0-100 % |
| Haze, resolution | 0,01 % |
| Haze, repeatability | Repeatability ≤ 0,05 % when haze < 10 %, Repeatability ≤ 0,1 % when haze ≥ 10 %, Transmittance repeatability ≤ 0,1 % |
| Sample size | Thickness ≤ 145 mm |
| Display | 7 inch capacitive touch screen |
| Memory | Mass storage |
| Interface | USB |
| Power | 220 V |
| Working temperature | +5 °C to +40 °C, relative humidity 80 % or lower (at 35 °C) no water vapor condensation |
| Storage temperature | -20 °C to +45 ℃, relative humidity 80 % or lower (at 35 °C) no water vapor condensation |
| Size (L×W×H) | 598 mm × 247 mm × 366 mm |
| Weight | 12 kg |
| Standard accessory | PC management software(Haze QC) |
| Optional | Measuring fixture, haze standard sheet |
