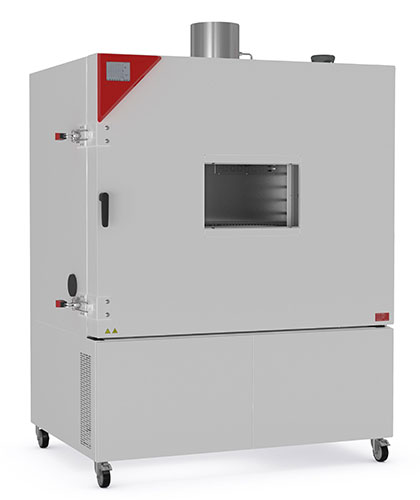

The Binder MK 1020 is a dynamic climate chamber for rapid temperature changes. This chamber is equipped with a security package for aging or performance testing of energy storage systems (cells and modules) between -40 °C to +120 °C.

The security package includes:

• Special Operator's Guide
• Intrinsically safe temperature sensor inside the unit, which is limited to 120 °C
• Heated overpressure flap d = 150 mm with port d = 250 mm
• Enhanced door-locking mechanism with reinforced brackets
• Connections for inert gas inlet and outlet

Main features of Binder MK 1020

• APT.line™ preheating chamber technology
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Unit self-test for comprehensive status analysis
• 2 access ports with silicone plugs, 80 mm, left and right
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• 4 castors, two with brakes
• Computer interface: Ethernet
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• 1 stainless steel rack
• Inner chamber made of stainless steel
• CFC-free refrigerant R-452A
• Cooling with compressor cooling unit

Interior volume and voltage

Model	Volume, l	Voltage
MK 1020	991	400 V / 3~ 50/60 Hz
