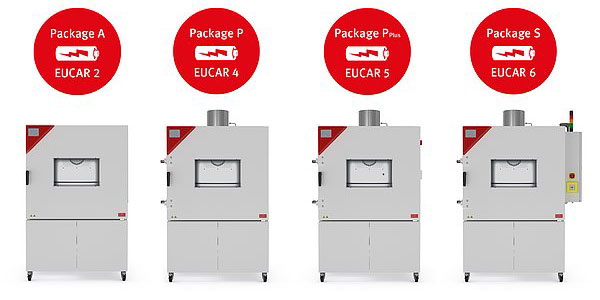

Binder offers battery test safety packages for test chambers for aging, performance, and stress tests.

The packages can be adapted to a variety of Binder models in order to meet test requirements relating to temperature range, climate range, and test area size.

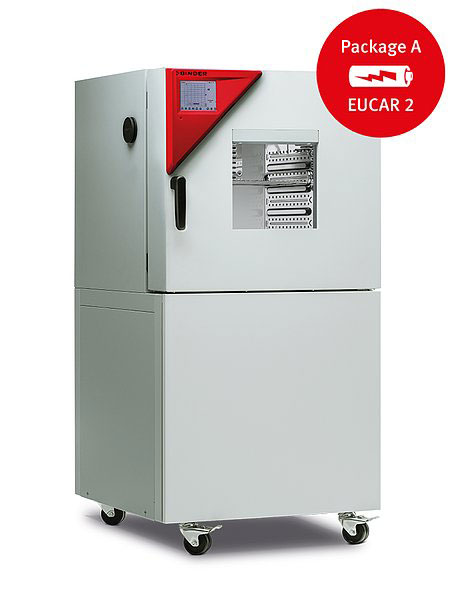

Package A for aging tests, EUCAR hazard level 2

• Class 2 independent temperature safety device when temperature is set to +120°C
• Temperature range limited to +110°C on the controller

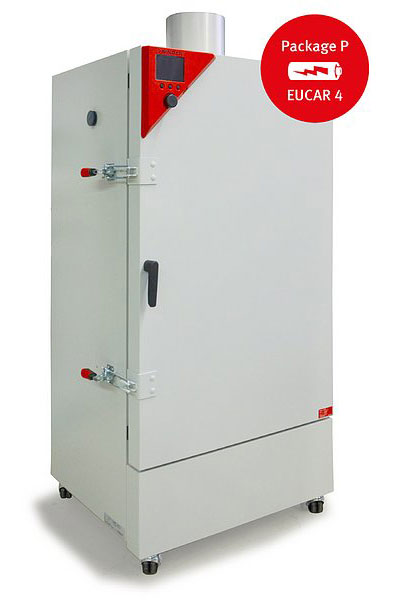

Package P for performance tests, EUCAR hazard level 4

• Class 2 independent temperature safety device when temperature is set to +120°C
• Temperature range limited to +110°C on the controller
• Stainless-steel pressure relief flap installed in the middle on top of the unit
• Enhanced door-locking mechanism with reinforced brackets
• Inert gas connections

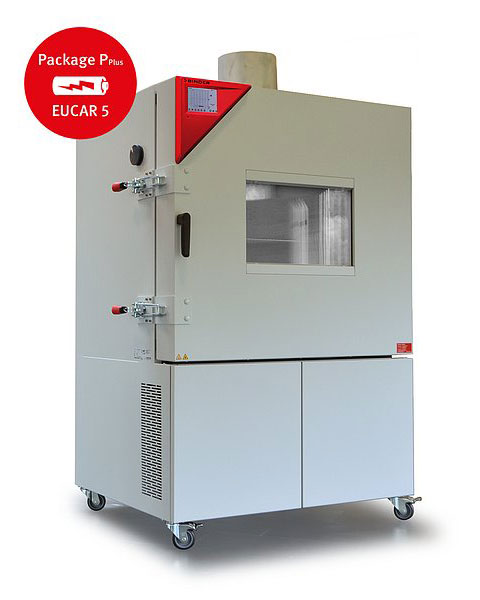

Package P Plus for extended performance tests, EUCAR hazard level 5

• Class 2 independent temperature safety device when temperature is set to +120°C
• Temperature range limited to +110°C on the controller
• Reversible pressure relief flap made of stainless steel installed in the middle on top of the unit
• Enhanced door-locking mechanism with reinforced brackets
• Inert gas connections
• Temperature-monitored testing area
• CO₂ fire suppression equipment

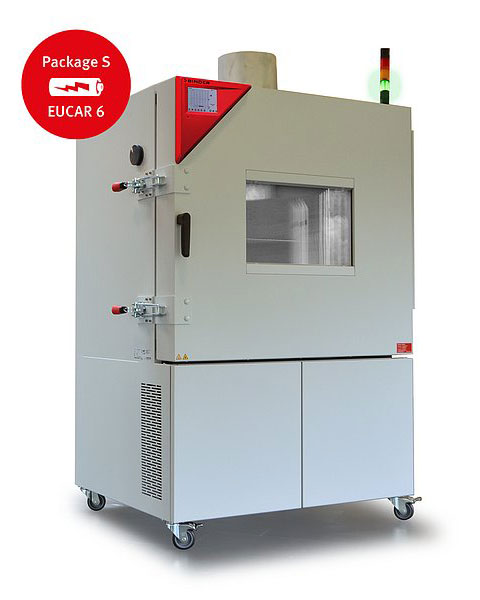

Package S for stress tests, EUCAR hazard level 6

• Class 2 independent temperature safety device when temperature is set to 120°C
• Temperature range limited to 110°C on the controller
• Reversible pressure relief flap made of stainless steel installed in the middle on top of the unit
• Enhanced door-locking mechanism with reinforced brackets
• N₂ permanent inertization
• Temperature-monitored testing area
• CO2 flushing device
• Monitoring of CO, H₂, and O₂ in testing area atmosphere

More information

Product brochure:
Binder Battery test chambers.pdf

Watch a video about the University of Warwick, UK, and their use of Binder battery test chambers
