The constant climate chambers of the KMF serie with expanded temperature / humidity range ensures absolutely constant test conditions throughout the testing area. Temperature range: -10 °C to +100 °C. Humidity range: 10 % RH to 98 % RH.

A big advantage of this constant climate chamber is its low space requirement and flexibility in terms of water supply. The wide temperature and humidity range make this constant climate chamber ideally suited for stress testing series.

Main features of the KMF series

• Temperature range: -10 °C to +100 °C
• Humidity range: 10 % RH to 98 % RH
• APT.line™ preheating chamber technology
• Humidity regulation with capacitive humidity sensor and vapor humidification
• Inner chamber made of stainless steel
• BINDER Multi Management Software APT-COM™ Basic Edition
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Unit self-test for comprehensive status analysis
• Tight-sealing inner door made of safety glass (ESG)
• Avoidance of glass corrosion by special TIMELESS coating
• 1 stainless steel rack
• Access port with silicone plug, 30 mm, left
• Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
• Computer interface: Ethernet
• Door heating

Models, interior volume and voltage

Model	Volume, l	Voltage
KMF 115	102	230 V / 1~ 50/60 Hz

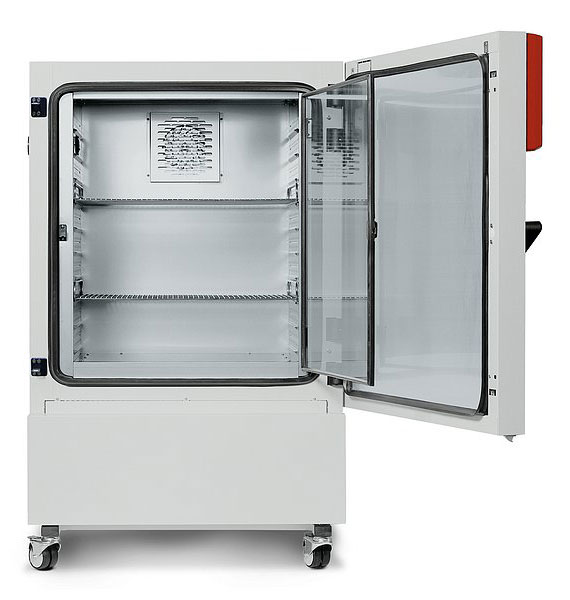

KMF 240	247	230 V / 1~ 50/60 Hz

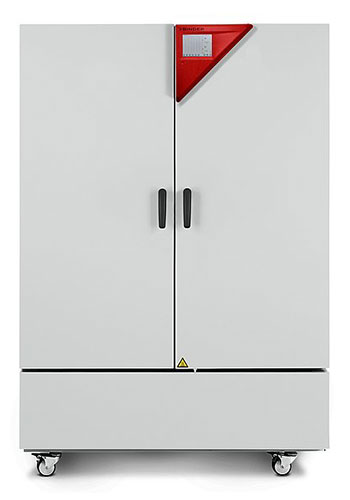

KMF 720	700	400 V / 3~ 50/60 Hz

More information

Data sheet: Binder Model KMF 115.pdf

Data sheet: Binder Model KMF 240.pdf

Data sheet: Binder Model KMF 720.pdf

Watch a video about Binder's constant climate chambers
